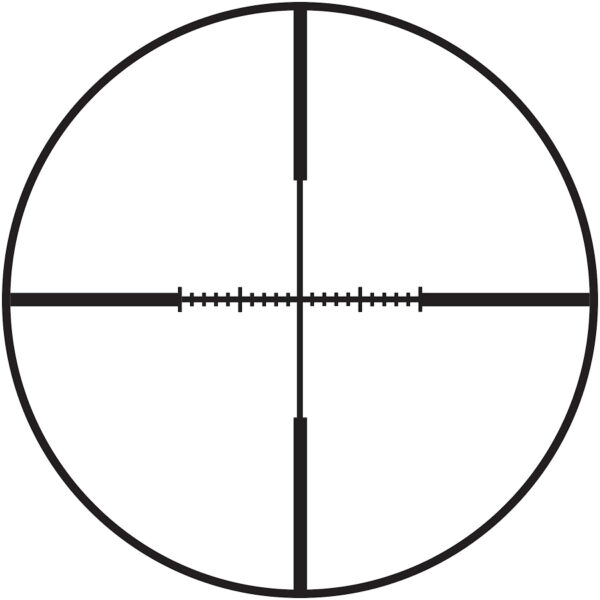

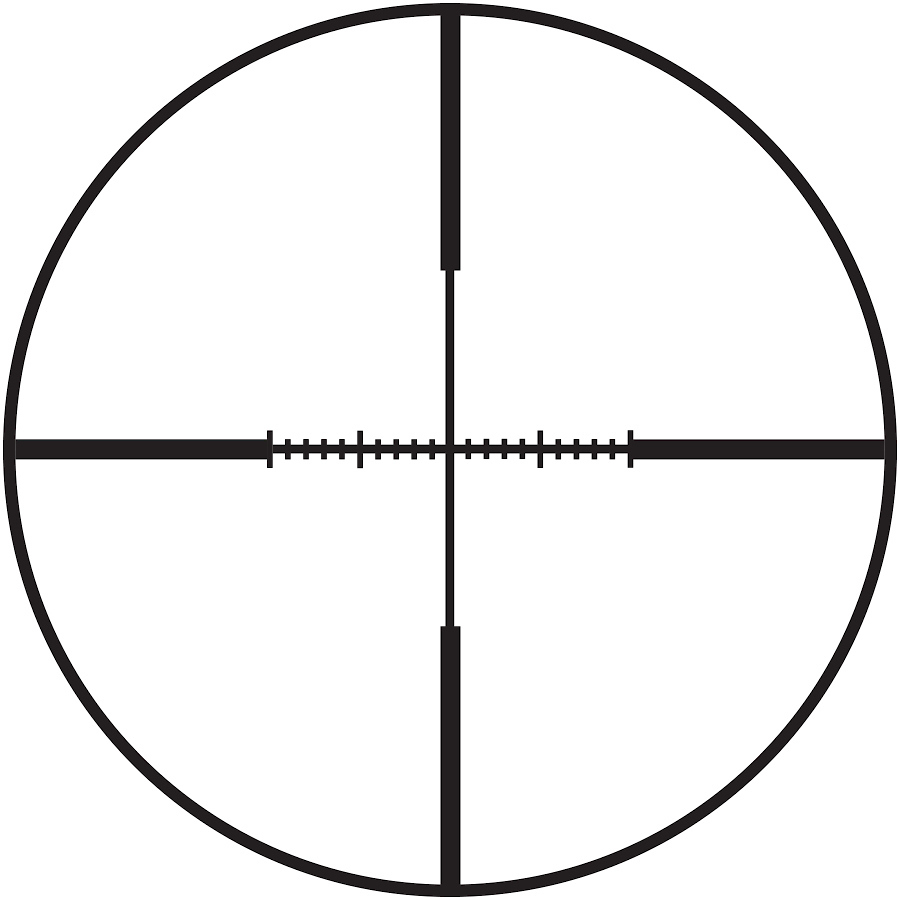

VX-5HD 3-15X44 CDS-ZL2 SIDE FOCUS WIND-PLEX
The VX®-5HD 3-15x44mm is made for anything and everything. Its 3-15x magnification range lets you take full advantage of any situation. Turn the power down to 3x for thick timber hunting, crank it up to 15x for your trek across the open plains, or go anywhere in-between. This scope has the versatility to dominate them all.
The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. And when it’s time to pull the trigger, you’ll want the accuracy and additional elevation that the CDS® ZeroLock® 2 dial delivers.
As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. And like all Leupold® riflescopes, it’s designed, machined, and assembled in the USA and guaranteed for life.
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
The side focus adjusts the scope’s parallax, making the reticle clearer and have less perceived movement when you’re shooting at different distances.
Leupold’s Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push-button ZeroLock system. It also features Leupold’s award-winning Custom Dial System® (CDS®), which allows shooters to order a laser-marked bullet-drop dial to match their exact ballistics and conditions.
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don’t utilize hash marks for range estimation.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
The ZeroStop system creates a backstop when returning the dial back to zero, so you don’t accidently turn the dial a full revolution in the wrong direction.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Adjustable Objective No
Elevation Adjustment Type CDS-ZL2
Locking Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Pop-Up Rezero
Custom Dial Compatible Yes
BDC Dial Included No
Reticle Type Second Focal Plane
Magnification Type Variable
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Weight (oz) 19.7
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 75
Elevation Adjustment Range (MIL) 22
Elevation Adjustment Range (cm @ 100m) 218
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 38MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 75
Windage Adjustment Range (MIL) 22
Windage Adjustment Range (cm @ 100m) 218
Windage Adjustment Per Revolution 15 MOA
Magnification Max 15
Magnification Min 3
Objective Lens Diameter (mm) 44
Linear FOV Low Mag (ft@100yds) 38.3
Linear FOV High Mag (ft@100yds) 7.7
Angular FOV Low Mag (Degrees) 7.3
Angular FOV High Mag (Degrees) 1.5
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50
