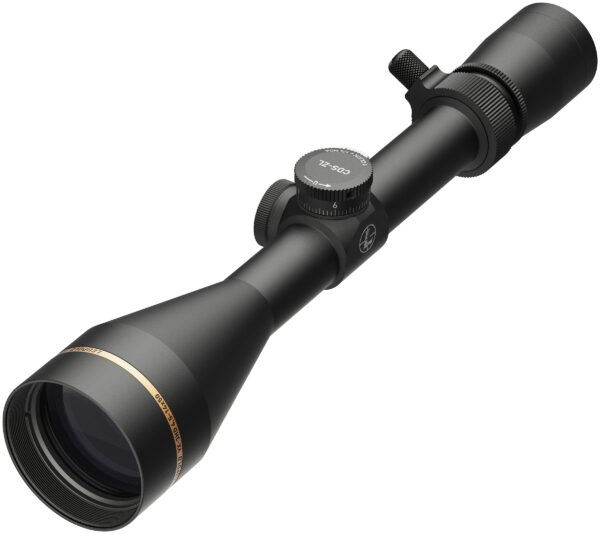

VX-3HD 4.5-14X50 CDS-ZL DUPLEX
The VX®-3HD 4.5-14x50mm delivers legendary performance and elite optical clarity in an incredibly tough, lightweight package. Its extremely popular magnification range and larger objective lens is perfect for timber and western mountain hunting..
The VX-3HD delivers outstanding performance in low light. With Leupold’s Elite Optical System, the VX-3HD delivers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand. We also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves. The VX-3HD is the best lightweight, low-light hunting scope in its class. And with its low-profile, one-revolution CDS® ZeroLock® dial, you can be confident your dial will only move when you want it to. Push the button to unlock it, dial, and then rotate it back to zero to lock it in place. It’s that simple.
Everything we put into your VX-3HD is there to help you tag out. Like all Leupold riflescopes, it’s designed, machined, and assembled in the USA and guaranteed for life.
Leupold’s Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
The ZeroLock® system eliminates accidental dial movement by locking it in place.
Aluminum offers excellent durability and ruggedness without adding unnecessary weight.
A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Adjustable Objective No
Side Focus No
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type CDS-ZL
Zero Stop Yes
Locking Dial Yes
Revolution Indicator No
Rezero Type Set Screw
Windage Adjustment Type Finger Click
Custom Dial Compatible Yes
BDC Dial Included No
Reticle Type Second Focal Plane
Light Management System Elite Optical System
Magnification Type Variable
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 16.9
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 75
Elevation Adjustment Range (MIL) 21.8
Elevation Adjustment Range (cm @ 100m) 218.2
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit 14.5MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 75
Windage Adjustment Range (MIL) 21.8
Windage Adjustment Range (cm @ 100m) 218.2
Windage Adjustment Per Revolution 15 MOA
Magnification Max 14
Magnification Min 4.5
Objective Lens Diameter (mm) 50
Linear FOV Low Mag (ft@100yds) 20.5
Linear FOV High Mag (ft@100yds) 7.6
Angular FOV Low Mag (Degrees) 3.9
Angular FOV High Mag (Degrees) 1.5
Eye Relief Low Mag (in) 4.4
Eye Relief High Mag (in) 3.6
Fixed Parallax-Free Distance (yd) 150
