ATS 80 Body Only

$3,390.00

THE BEST START

Anyone looking for equipment of proven quality right from the start will be delighted by the spotting scopes in the ATS/STS range. They offer all the features that you would look for in a spotting scope, including a large field of view for rapid target acquisition and tried-and-tested optics. The (straight or angled) view can be adjusted to meet personal preferences for any hunting situation.

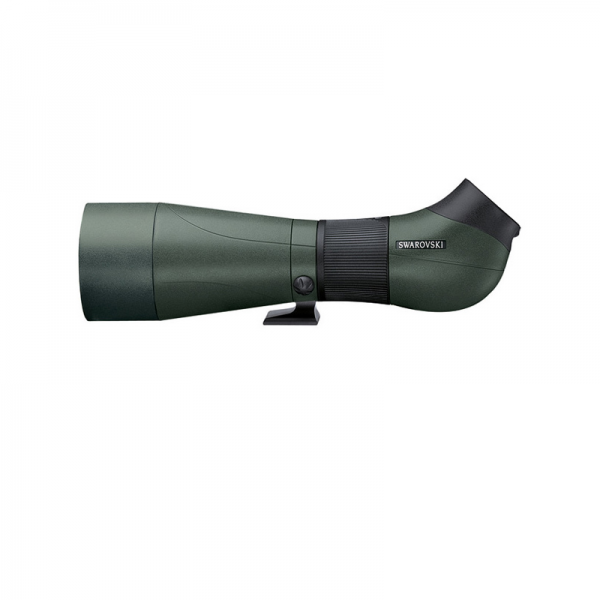

ATS 80

With its angled view the ATS 80 enables comfortable observation for hours. The 80 mm objective lens diameter provides higher detail recognition, while a wider exit pupil ensures brighter images and comfortable viewing even in poor lighting conditions.

Please phone store on availability on all Swarovski items.

Rivers to Ranges PH : 06 878 7177

Description

Technical Data

Effective objective lens diameter (mm)
80
Eye relief (mm)
17
Shortest focusing distance (ft / m)
16.4 / 5
Diopter correction at ∞ (dpt)
> 5
Objective filter thread
M 82 x 0.75
Functional temperature
-13 °F to +131 °F (-25 °C to +55 °C)
Storage temperature
-22 °F to +158 °F (-30 °C to +70 °C)
Submersion tightness
13 ft (4m) water depth (inert gas filling)

Technical data ATS/STS with eyepiece 25-50x

Magnification
25-50x
Exit pupil diameter (mm)
3.2-1.6
Field of view (ft/1000 yds / m/1000 m)
126-81 ft / 42-27 m
Field of view (degrees)
2.4-1.55
Field of view for spectacle wearers (degrees)
2.4-1.55
Field of view. apparent (degrees)
60-70
Light transmission (%) total product
85
Weight angled view (oz / g)
59.1 / 1675
Length angled view (in / mm)
15.8 / 400
Focal length with TLS APO (mm)
750-1500

Technical data ATS/STS with eyepiece 20-60x

Magnification
20-60x
Exit pupil diameter (mm)
4.0-1.3
Field of view (ft/1000 yds / m/1000 m)
108-60 / 36-20
Field of view (degrees)
2.1-1.1
Field of view for spectacle wearers (degrees)
2.1-1.1
Field of view. apparent (degrees)
40-65
Light transmission (%) total product
86
Weight angled view (oz / g)
57.8 / 1640
Length angled view (in / mm)
15.8 / 400
Focal length with TLS APO (mm)
600-1800
