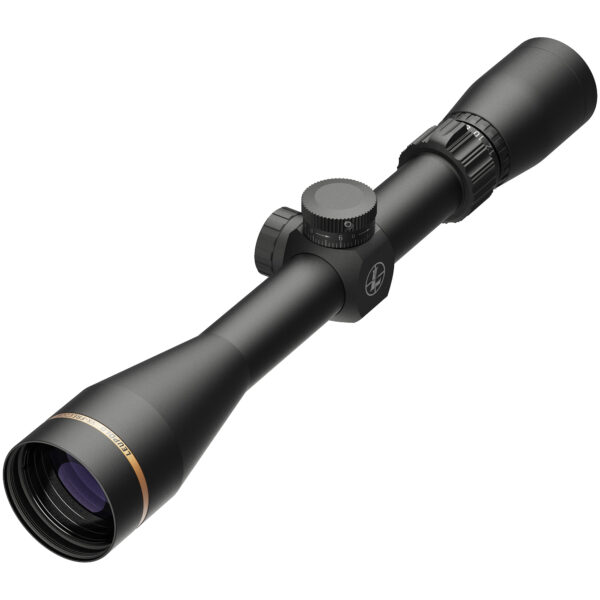

VX-FREEDOM 4-12X40 CDS DUPLEX
The VX®-Freedom® 4-12x40mm delivers legendary Leupold® performance and dependability in a versatile magnification range that’s ideal for mid to longer-range shots. It’s also equipped with the Leupold® Custom Dial System® (CDS), which gives you a customizable ballistics solution at your fingertips. This system is easy to install and even easier to use.
Built around Leupold’s Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold riflescopes, it’s designed, machined, and assembled in the USA and guaranteed for life.
Leupold’s Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Adjustable Objective No
Side Focus No
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type CDS
Locking Dial No
Zero Lock Dial No
Revolution Indicator No
Rezero Type Set Screw
Windage Adjustment Type Finger Click
Custom Dial System (CDS) Yes
BDC Dial Included No
Reticle Type Second Focal Plane
Magnification Type Variable
Nightvision Compatible Illumination No
Daylight Bright Illumination No
Motion Sensor Technology (MST) No
Electronic Reticle Level No
Guard-ion Lens Coating No
Weight (oz) 13.1
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 80
Elevation Adjustment Range (MIL) 23
Elevation Adjustment Range (cm @ 100m) 233
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit 14MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 80
Windage Adjustment Range (MIL) 23
Windage Adjustment Range (cm @ 100m) 233
Windage Adjustment Per Revolution 15 MOA
Magnification Max 12
Magnification Min 4
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 21.5
Linear FOV High Mag (ft@100yds) 10
Angular FOV Low Mag (Degrees) 4.1
Angular FOV High Mag (Degrees) 1.9
Eye Relief Low Mag (in) 4.9
Eye Relief High Mag (in) 3.7
Fixed Parallax-Free Distance (yd) 150
